dg4W

Workstation

Powerfully, Quietly, Compactly.

  • Up to 47dB

    Library-level quietness

  • Seven GPUs

    Form factor with up to 7 GPUs

  • Built-in Liquid Cooling System

    Management-free built-in Liquid cooling System

  • Liquid Cooling System

    Maximize system usage at all times, without heat-related performance drops

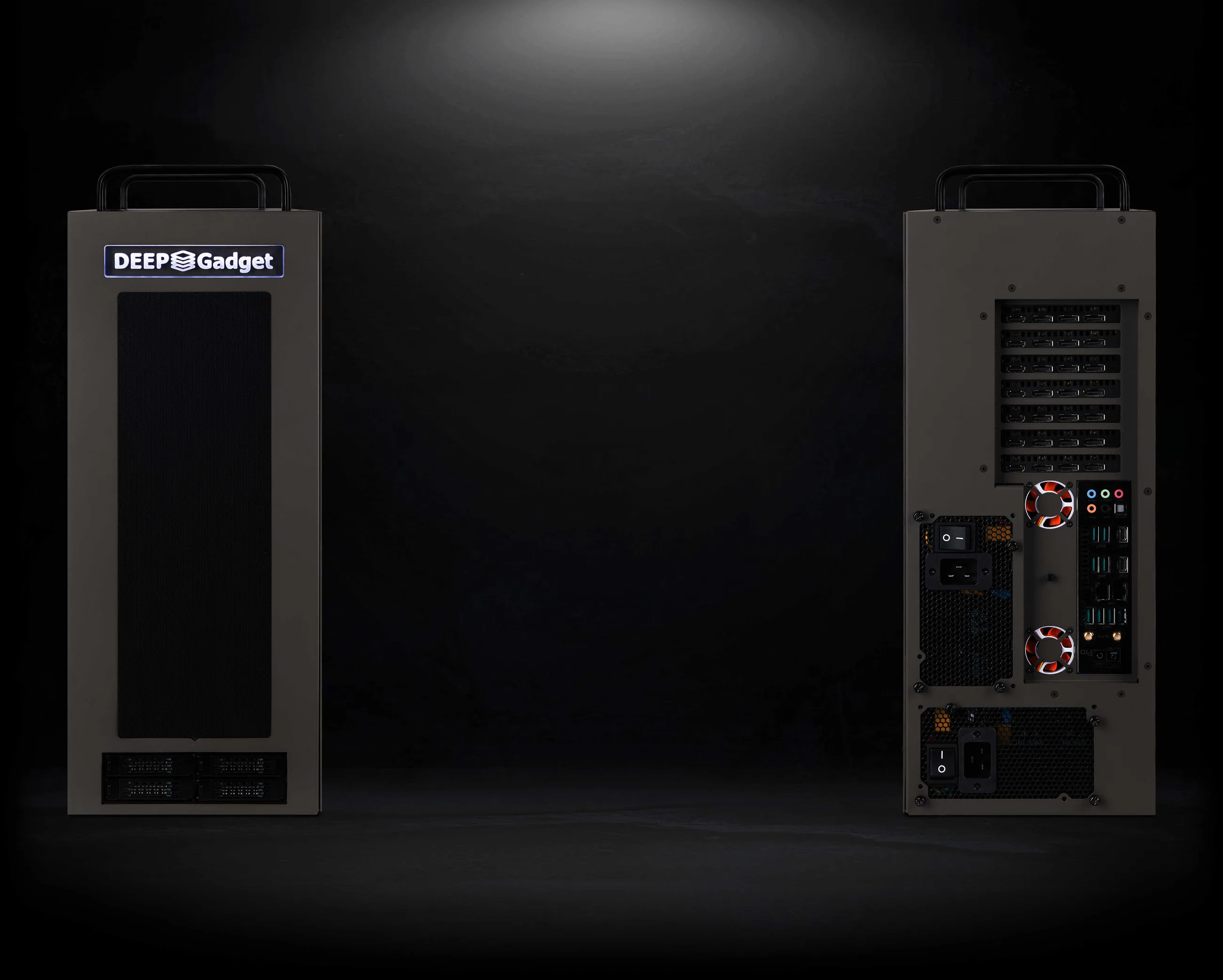

dg4w이미지

  • Up to 2TB RAM

    Support DDR4 3200MHz , 8-channel 8xDIMM ECC, REG

  • CPU with powerful performance

    AMD Ryzen™ Threadripper™Support PRO 5000WX series

  • Up to 7 GPUs

    Fully supports 7 PCIe Gen 4.0 x16 GPUs

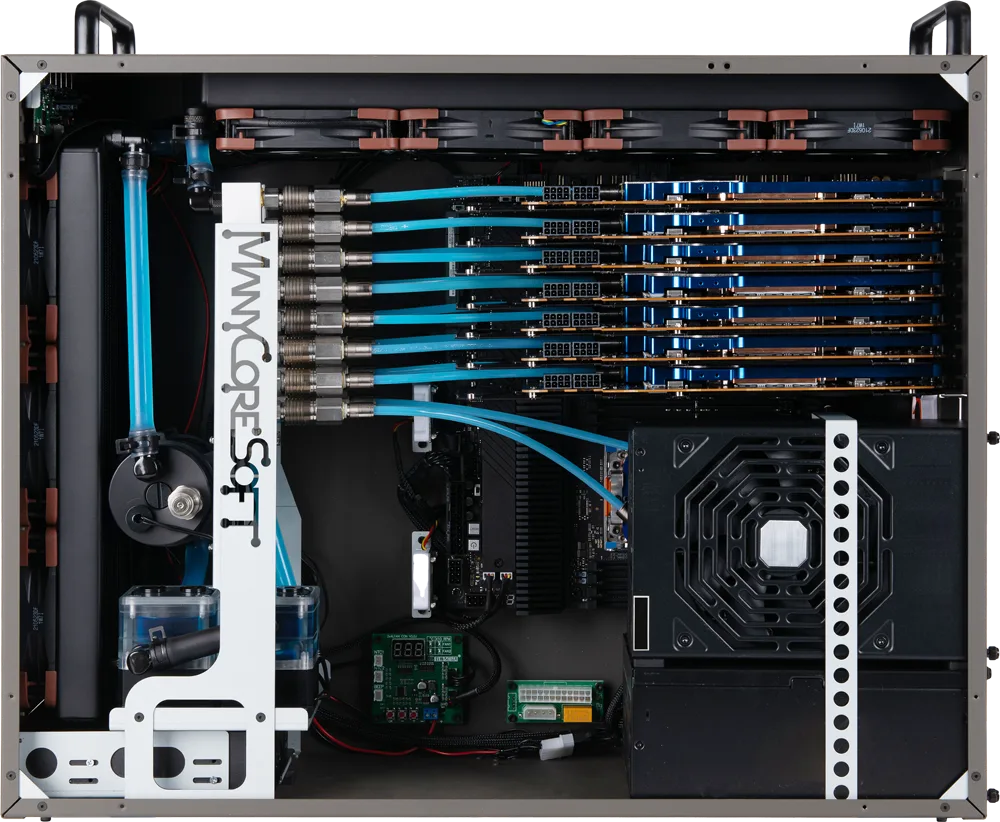

dg4w왼쪽이미지

Support for various GPUs

In AI learning, performance of TF32 and BFLOAT16 is crucial. GPUs that can be installed in deep gadgets have the following rankings for the corresponding metrics. With a robust product line and comprehensive GPU support, professionals requiring high specifications are poised for success.
ModelManufacturerMemoryAI learning Perf
TF32(FP32)
(TFLOPS)		AI Perf
BF16(FP16)
(TFLOPS)		AI interfernce Perf
INT8|FP8|FP4
(TOPS/TFLOPS)		Precision computation Perf
FP64
(TFLOPS)		General purpose computing Perf
FP32
(TFLOPS)		Rendering Perf
RT Core
(TFLOPS)
H100NVIDIAHBM2e
80GB		378
(756*)		756
(1,513*)		1,513
(3,026*)		2651-
A100XNVIDIAHBM2e
80GB		159
(318*)		318
(636*)		636
(1,272*)		9.919.9-
A100NVIDIAHBM2e
80GB		156
(312*)		312
(624*)		624
(1,248*)		9.719.5-
L40SNVIDIAGDDR6
48GB		183
(366*)		362
(733*)		733
(1,466*)		1.491.6209
6000 AdaNVIDIAGDDR6
48GB		182
(364*)		364
(729*)		729
(1,457*)		1.491.1210.6
L40NVIDIAGDDR6
48GB		90.5
(181*)		181
(362*)		362
(724*)		1.490.5209
A6000NVIDIAGDDR6
48GB		38.7
(77.4*)		77.4
(154.8*)		154.8
(309.7*)		1.338.775.6
5000 AdaNVIDIAGDDR6
32GB		65.3
(130.5*)		261
(522*)		522
(1,044*)		165.28151
A5000NVIDIAGDDR6
24GB		27.8
(55.6*)		55.6
(111.2*)		111.2
(222.4*)		0.927.854.2
RTX4090NVIDIAGDDR6
24GB		82.5
(165*)		165
(330*)		660.6
(1,321*)		1.382.5191
RTX4090 DNVIDIAGDDR6
24GB		73.54
(147*)		147
(294*)		588
(1,176*)		1.1473.54170
RTX4080NVIDIAGDDR6
16GB		48.7
(97.4*)		97.4
(195*)		389.8
(779.8*)		0.748.7112.7
RTX4070TiNVIDIAGDDR6
40.1
(80.2*)		80.2
(160.4*)		320
(641*)		0.640.193
MI250AMDHBM2e
128GB		45.3
(90.5**)		362.1362.190.545.3-
MI210AMDHBM2e
64GB		22.6
(45.3**)		18118145.322.6-
MI100AMDHBM2
32GB		23.192.392.311.523.1-
RX7900XTXAMDGDDR6
24GB		611231233.861-

*Performance using the new sparsity feature
**Performance using matrix core
(Specifications not disclosed by the manufacturer are estimates, so there may be errors.)

Support for high-speed NIC

No need to worry about the network with support for high-speed network adapters, including InfiniBand NDR, HDR, EDR, Ethernet 200G, and 100G.
nic카드

Fully sealed liquid flow path

A completely sealed liquid channel with solid stability ensures all the benefits of liquid cooling without any drawbacks.
deep gadget®'s effecient cooling system distinct from others

dg4W

Cooling System

General custom

Cooling System

dg4w도표Maintaining low temperatures even during high-specification tasks, deep gadget® cools each component independently. This ensures optimal performance of each part by preventing heat buildup, unlike conventional liquid cooling systems.

Adaptive Liquid Cooling System

To comprehensively monitor not only the temperature utilization rate and temperature of the system but also the ambient temperature, the adaptive control technology of the Liquid Cooling System continuously checks the temperature of the coolant without interruption. During light workload, the system manages the fan with adaptive control, thereby maintaining a quietness working environment for the operator.
dg4액체냉각시스템

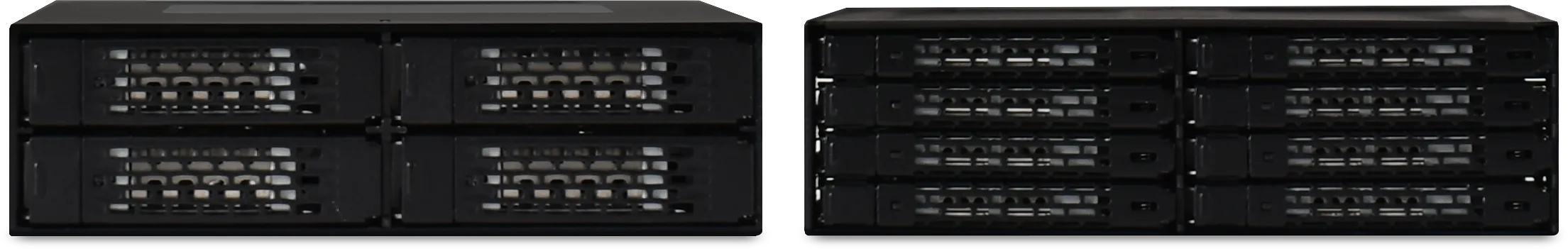

Up to 8 expanded storage

Expandable storage supporting 2 types of SSD bays, allowing for the installation of up to 8 SSD bays, provides ample capacity to record professional achievements.
dg4스토리지

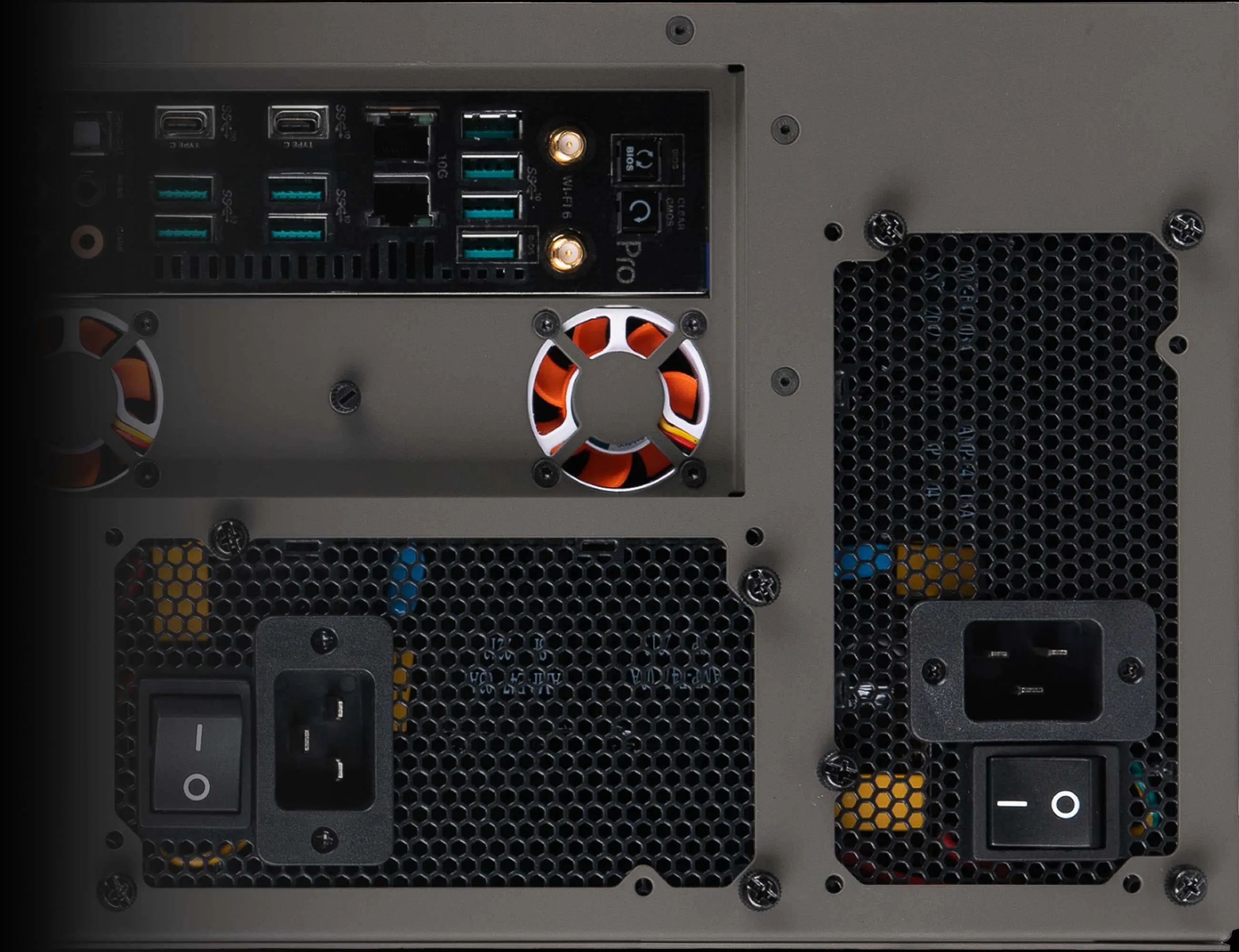

Stable power

Two stable and highly efficient 80 PLUS Platinum rated 2000W power supplies serve as the dual hearts of dg4W, ensuring unwavering performance even during demanding professional tasks that require high specifications.
dg4w파워

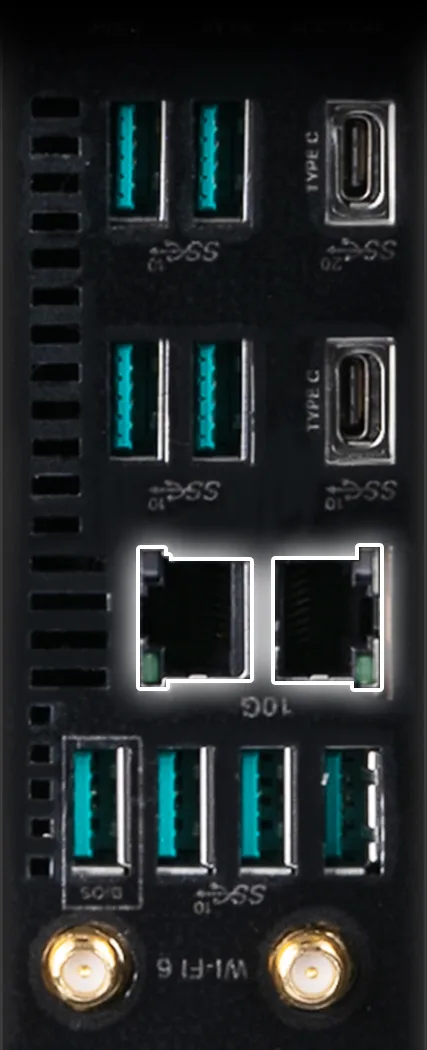

Support for two 10Gs

Definitely from the basics, supports two 10G Ethernet ports.
10g

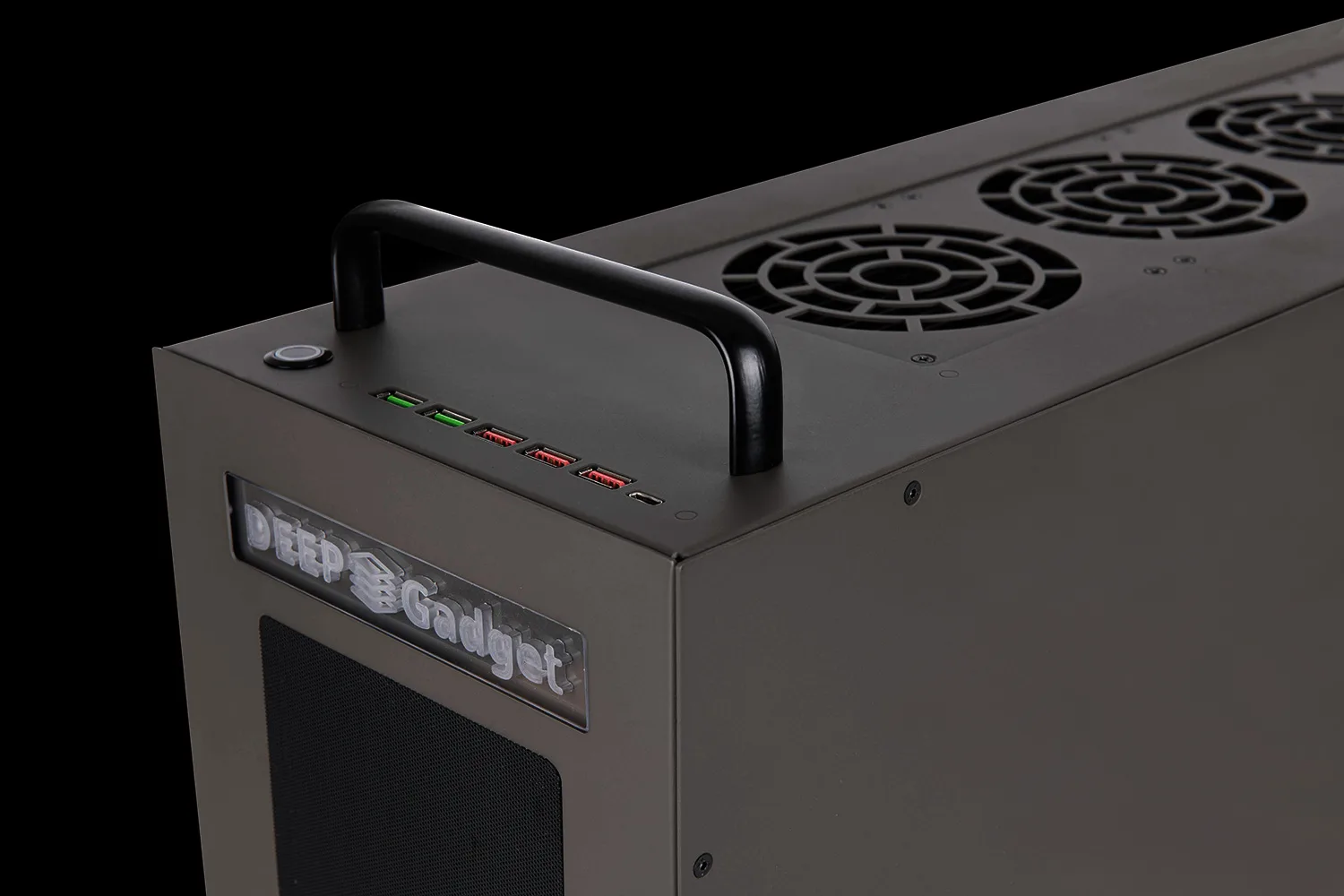

Handle

Designed to always be by your side. The sturdy and stylish stainless steel handle of dg4W provides a secure grip for safe handling for transportation.
손잡이

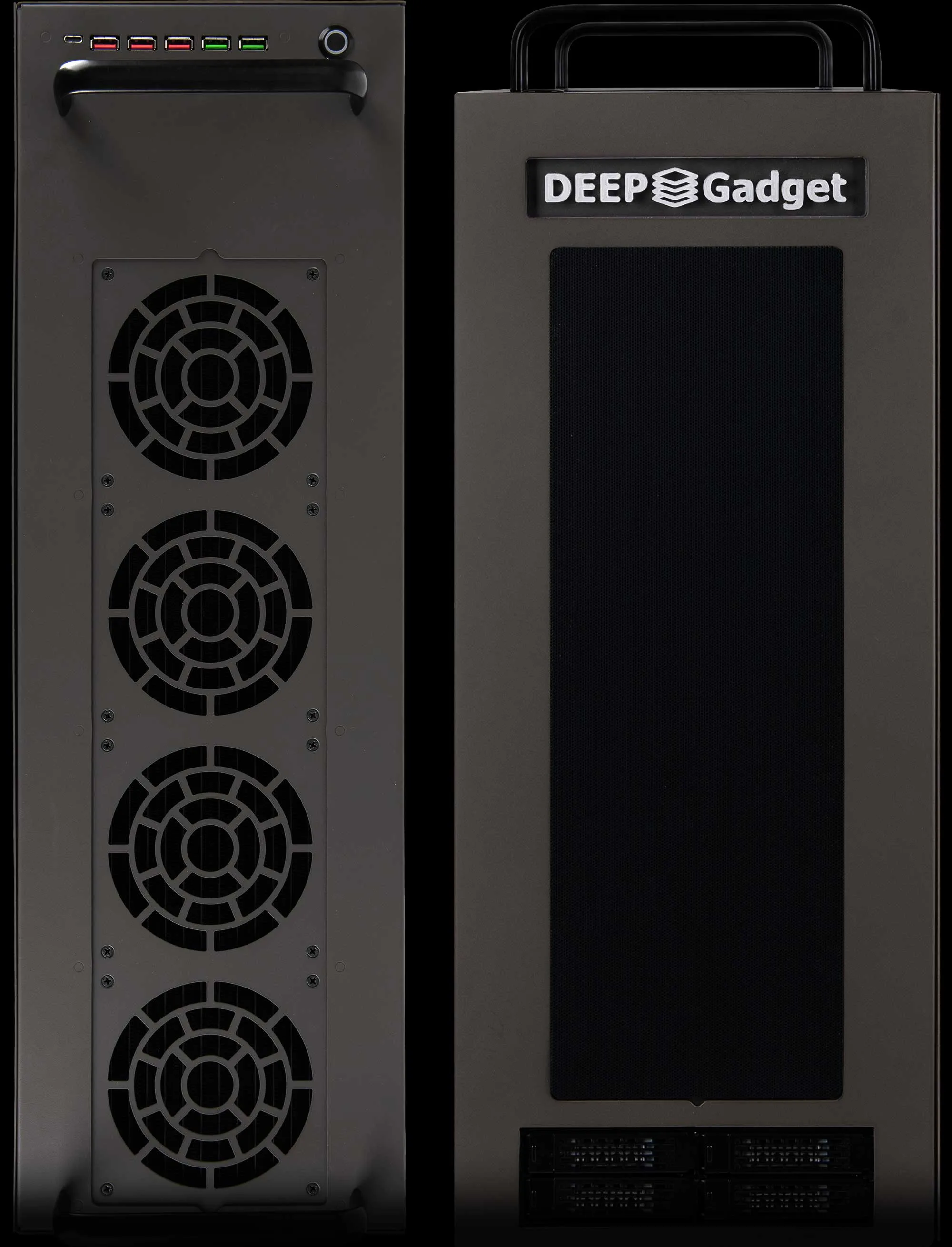

Radiator

Professionally engineered large-capacity 4-row radiator at the top and large-capacity 3-row radiator at the front effectively absorb heat generated by the system.
radiator

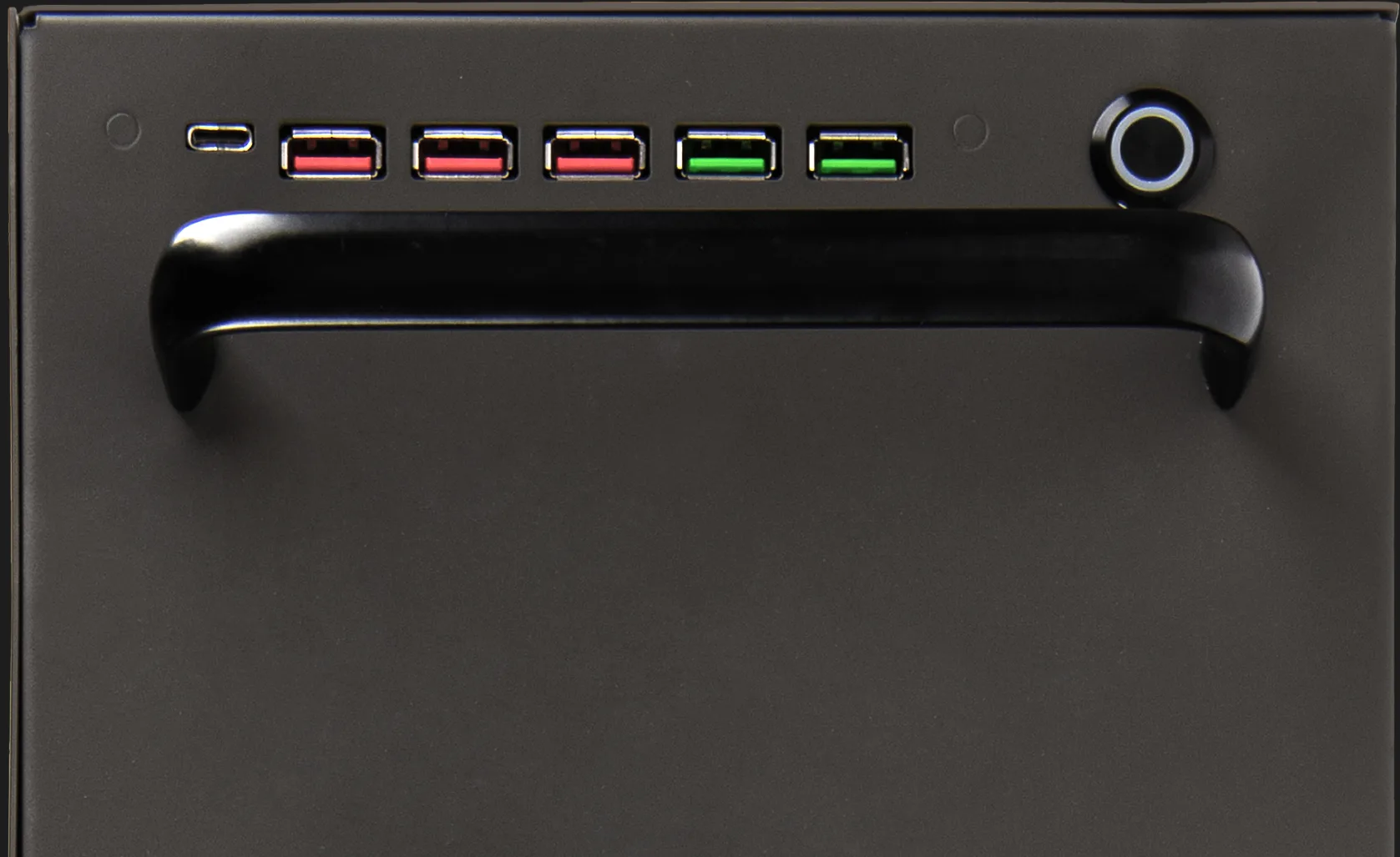

Expansion port

1 x USB-C Port (USB 3.1 Gen 2)3 x USB-A Port (USB 3.1 Gen 2)2 x QC 3.0 Charging Port (18W)
usb
특허도면

The expertise ingrained in the know-how of deep gadget®, which has dedicated over a decade to researching and developing liquid cooling systems, starting from Chundoong supercomputer.
deep gadget® Liquid Cooling System boasts convenience, high cooling performance, and robust safety without the need for separate management.
Enjoying widespread trust, it is extensively utilized in numerous companies, large data centers, and various laboratories.
Undoubtedly, deep gadget® stands out as the premier liquid cooling server, offering an unparalleled specialty in its field.

SPEC

  • noiseQuietness

    20 ~ 47dB (Full load)

  • sizeSize
    W x D x H

    202mm x 625mm x 495mm
    495mm(model 457mm + Handle 38mm + [Option]Locakable wheels 41mm)

  • cpuCPU

    AMD Ryzen™ Threadripper PRO 9000 Series Processors
    5th Generation Intel® Xeon® Scalable Processors

  • gpuGPU

    Up to 6 GPUs
    NVIDIA L40S
    NVIDIA RTX 6000 Ada

  • ramMemory

    Up to 768GB
    DDR5 5600 ECC

  • hddHDD

    Up to 4TB main storage
    M.2 NVMe SSD

    Up to 76TB sub-storage
    M.2 NVMe SSD / 2.5” SSD / 2.5” HDD

  • gpuPCIe

    7 PCIe 5.0 x16(AMD) / 5 PCIe 5.0 x16(Intel)

  • softwareOS

    Windows, RHEL, Ubuntu, Rocky Linux

  • networkNetwork

    2 x 10GbE Base-T
    IPMI
    Wifi 6E
    InfiniBand NDR / HDR / EDR Ethernet 400G / 200G / 100G
    NIC - Infiniband Card 100G / 200G Dual Port (Option)

  • asWarranty

    For 3 years

  • powerPower

    2 x 2,000W(4kW) 80Plus Gold

  • manualManual & Warranty

    Manual download더보기
