Rackmount
dg4 Series
The new basic of computing power.

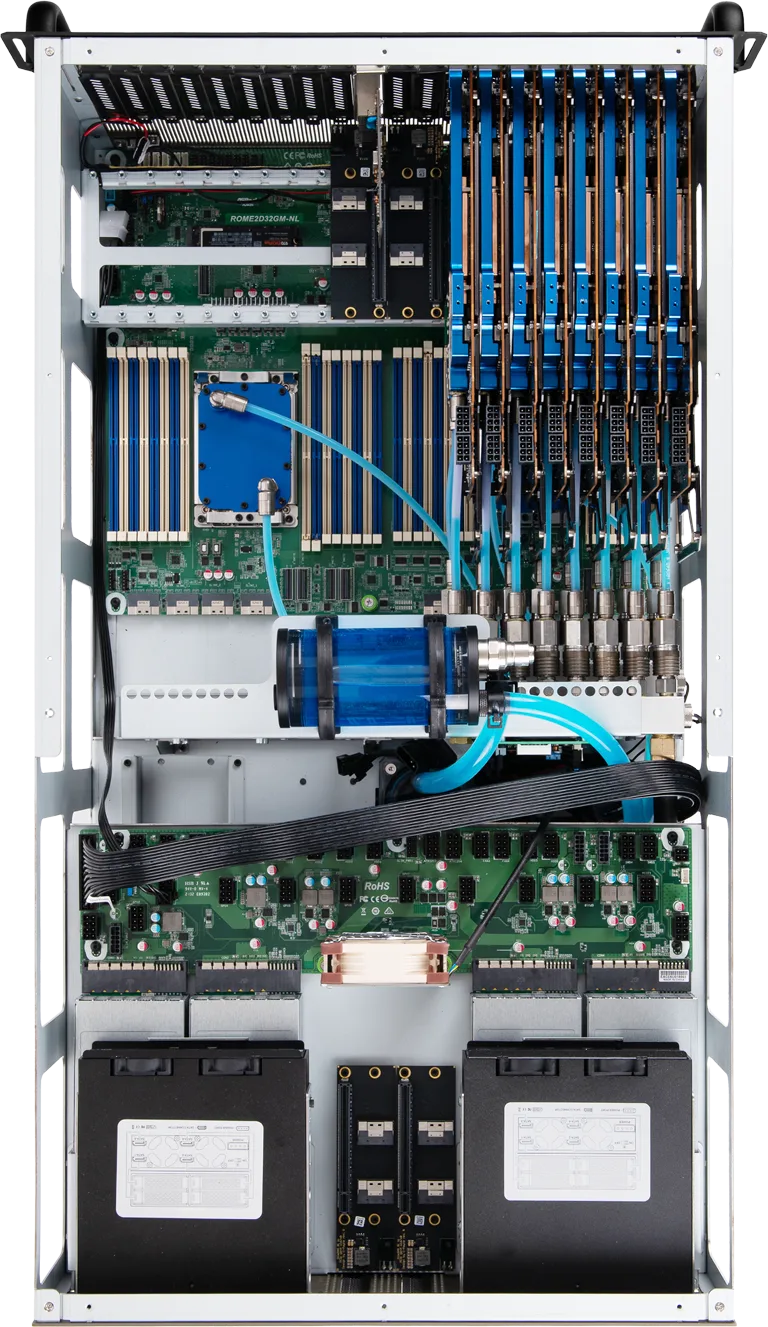

Management-free built-in Liquid Cooling System
A fully sealed inner liquid conduit ensures the world's highest level of stability.High-performance Dual CPUs and 4TB+ memory
With 32 physical DIMM slots, dg4R can reliably use more than 4TB of memory, enabling professionals to run large projects, analyze huge amounts of data sets, and run multiple professional-grade applications to be fast-tracked.deep gadget vs. General multi-GPU server
deep gadget® ensures more pleasant transmission performance than multi-GPU servers using PCIe switches
Up to 8 high performance GPUs
dg4R is an overwhelming liquid cooling system that controls dense, high-performance GPU heat generation to ensure reliable operation
Support for various GPUs
In AI learning, performance of TF32 and BFLOAT16 is crucial. GPUs that can be installed in deep gadgets have the following rankings for the corresponding metrics. With a robust product line and comprehensive GPU support, professionals requiring high specifications are poised for success.| Model | Manufacturer | Memory | AI learning Perf TF32(FP32) (TFLOPS) | AI Perf BF16(FP16) (TFLOPS) | AI interfernce Perf INT8|FP8|FP4 (TOPS/TFLOPS) | Precision computation Perf FP64 (TFLOPS) | General purpose computing Perf FP32 (TFLOPS) | Rendering Perf RT Core (TFLOPS) |
|---|---|---|---|---|---|---|---|---|
| H100 | NVIDIA | HBM2e 80GB | 378 (756*) | 756 (1,513*) | 1,513 (3,026*) | 26 | 51 | - |
| A100X | NVIDIA | HBM2e 80GB | 159 (318*) | 318 (636*) | 636 (1,272*) | 9.9 | 19.9 | - |
| A100 | NVIDIA | HBM2e 80GB | 156 (312*) | 312 (624*) | 624 (1,248*) | 9.7 | 19.5 | - |
| L40S | NVIDIA | GDDR6 48GB | 183 (366*) | 362 (733*) | 733 (1,466*) | 1.4 | 91.6 | 209 |
| 6000 Ada | NVIDIA | GDDR6 48GB | 182 (364*) | 364 (729*) | 729 (1,457*) | 1.4 | 91.1 | 210.6 |
| L40 | NVIDIA | GDDR6 48GB | 90.5 (181*) | 181 (362*) | 362 (724*) | 1.4 | 90.5 | 209 |
| A6000 | NVIDIA | GDDR6 48GB | 38.7 (77.4*) | 77.4 (154.8*) | 154.8 (309.7*) | 1.3 | 38.7 | 75.6 |
| 5000 Ada | NVIDIA | GDDR6 32GB | 65.3 (130.5*) | 261 (522*) | 522 (1,044*) | 1 | 65.28 | 151 |
| A5000 | NVIDIA | GDDR6 24GB | 27.8 (55.6*) | 55.6 (111.2*) | 111.2 (222.4*) | 0.9 | 27.8 | 54.2 |
| RTX4090 | NVIDIA | GDDR6 24GB | 82.5 (165*) | 165 (330*) | 660.6 (1,321*) | 1.3 | 82.5 | 191 |
| RTX4090 D | NVIDIA | GDDR6 24GB | 73.54 (147*) | 147 (294*) | 588 (1,176*) | 1.14 | 73.54 | 170 |
| RTX4080 | NVIDIA | GDDR6 16GB | 48.7 (97.4*) | 97.4 (195*) | 389.8 (779.8*) | 0.7 | 48.7 | 112.7 |
| RTX4070Ti | NVIDIA | GDDR6 | 40.1 (80.2*) | 80.2 (160.4*) | 320 (641*) | 0.6 | 40.1 | 93 |
| MI250 | AMD | HBM2e 128GB | 45.3 (90.5**) | 362.1 | 362.1 | 90.5 | 45.3 | - |
| MI210 | AMD | HBM2e 64GB | 22.6 (45.3**) | 181 | 181 | 45.3 | 22.6 | - |
| MI100 | AMD | HBM2 32GB | 23.1 | 92.3 | 92.3 | 11.5 | 23.1 | - |
| RX7900XTX | AMD | GDDR6 24GB | 61 | 123 | 123 | 3.8 | 61 | - |
*Performance using the new sparsity feature
**Performance using matrix core
(Specifications not disclosed by the manufacturer are estimates, so there may be errors.)
Full support for 10G and IPMI
Definitely from the basics. Support two 10G Ethernet ports and one IPMI port.
Support for high-speed NIC
No need to worry about the network with support for high-speed network adapters, including InfiniBand NDR, HDR, EDR, Ethernet 200G, and 100G.

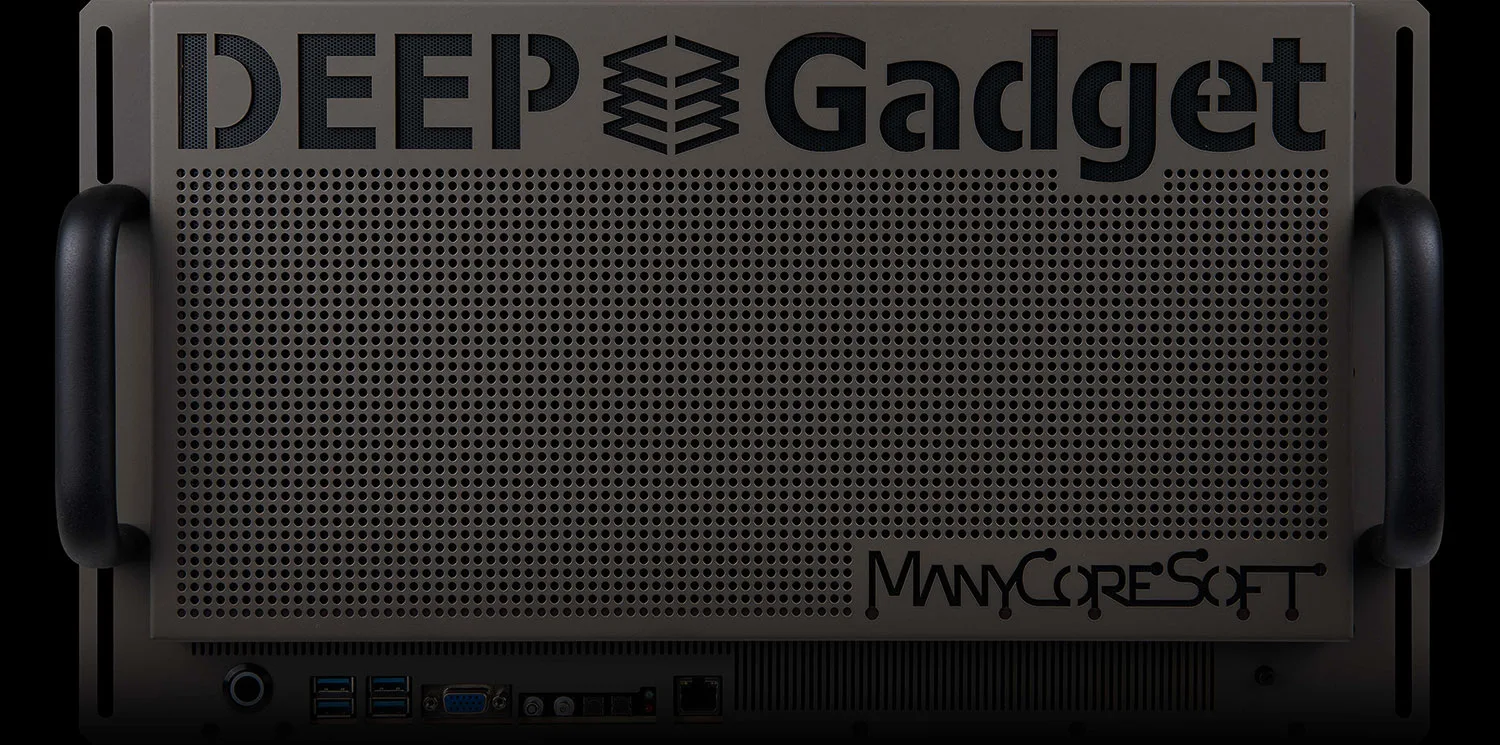

Easy management with built-in dust filter and detachable cover

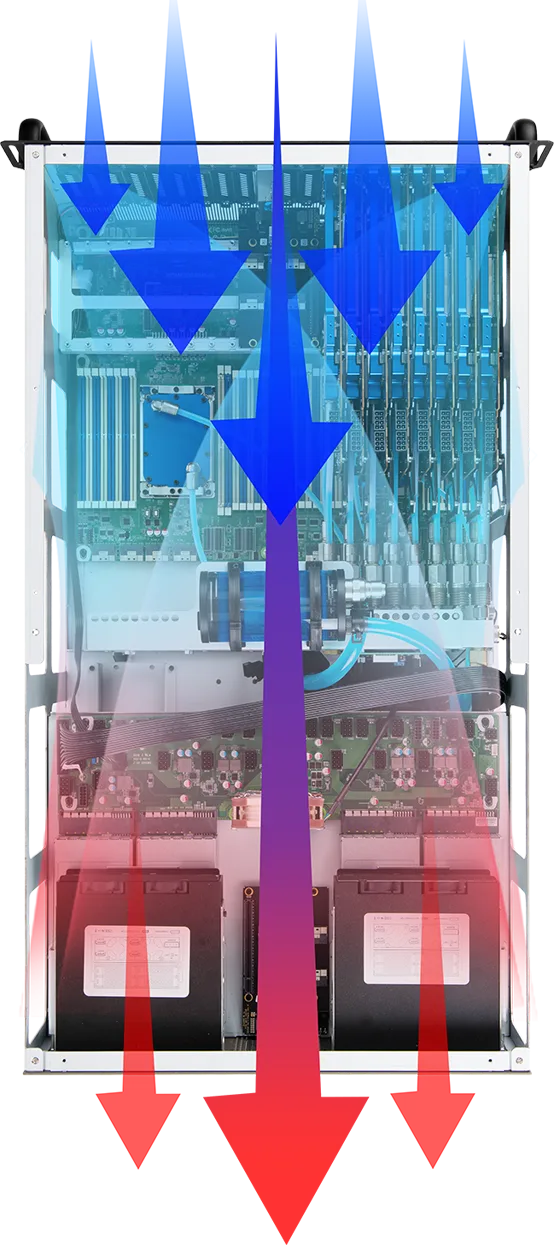

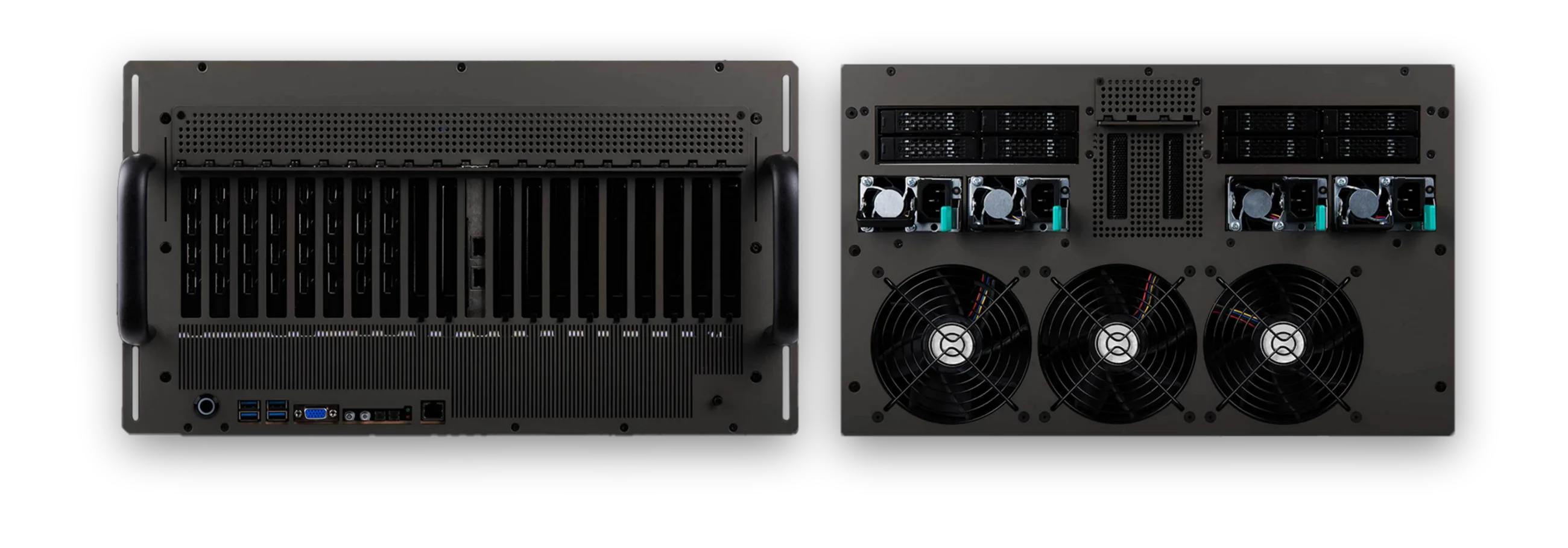

Cools all the way from front to back with optimized airflow
deep gadget®'s effecient cooling system distinct from others
Maintaining low temperatures even during high-specification tasks, deep gadget® cools each component independently. This ensures optimal performance of each part by preventing heat buildup, unlike conventional liquid cooling systems.

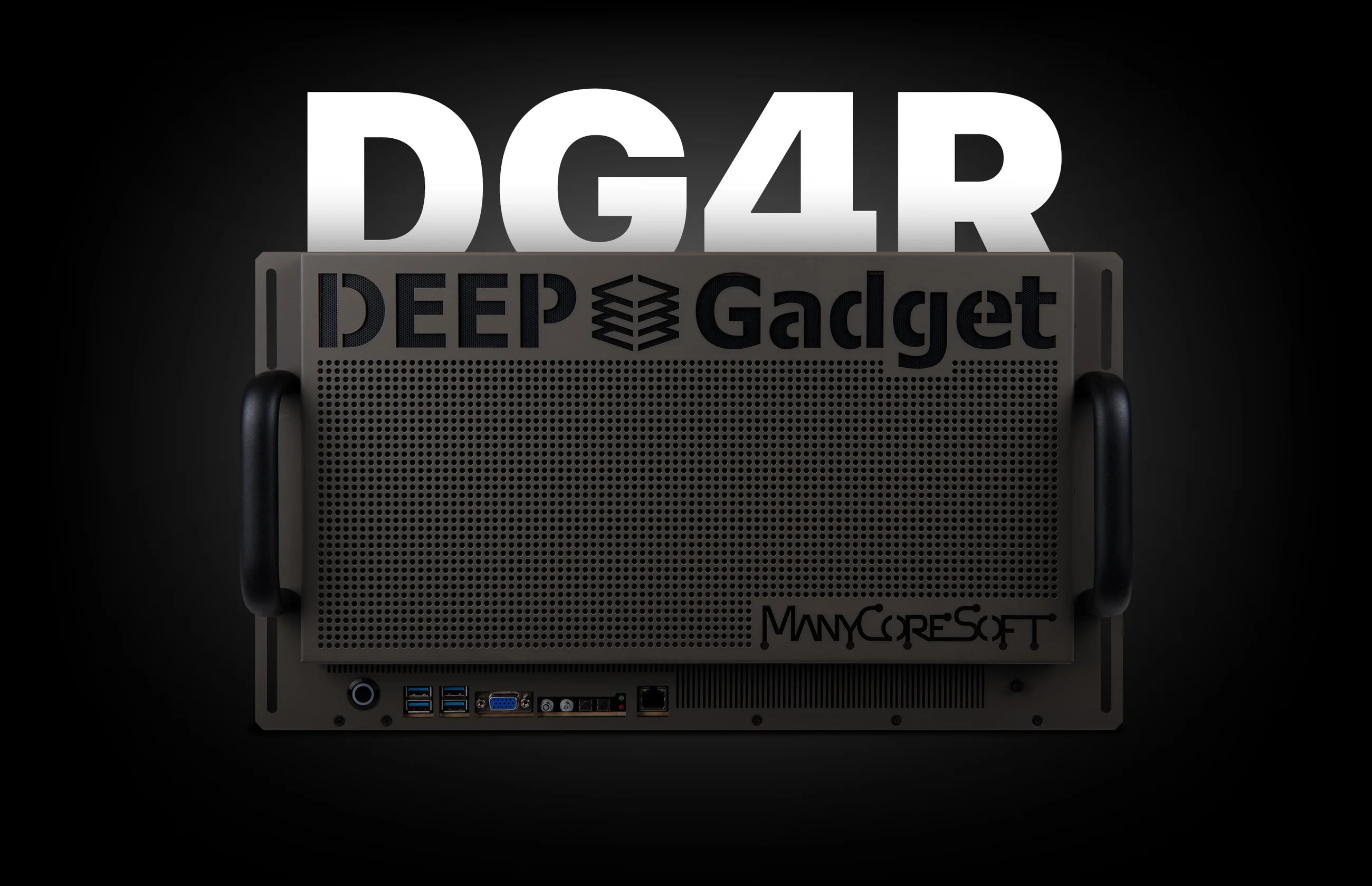

dg4R
Cooling System
General custom
Cooling System
Maintaining low temperatures even during high-specification tasks, deep gadget® cools each component independently. This ensures optimal performance of each part by preventing heat buildup, unlike conventional liquid cooling systems.Equipped with world-class Dual-Pump cooling systems to prevent heat-induced GPU throttling and extend life
deep gadgetAlways 100% performance
General GPU serverThrottling(lowering performance)
deep gadget
GPU performance does not deteriorate as the temperature remains around 60℃, even if the GPU is used at its maximum.General GPU server
The GPU operating clock automatically drops and performance decreases as the GPU temperature rises to 80~90℃.World-leading adaptive Liquid Cooling System
deep gadget adaptively controls the Liquid Cooling System by constantly checking the system's usage rate and temperature.If your system is doing light work, it will run quieter.
With all the software ready to go. Dive into deep learning right away.
The expertise ingrained in the know-how of deep gadget®, which has dedicated over a decade to researching and developing liquid cooling systems, starting from Chundoong supercomputer.
deep gadget® Liquid Cooling System boasts convenience, high cooling performance, and robust safety without the need for separate management.
Enjoying widespread trust, it is extensively utilized in numerous companies, large data centers, and various laboratories.
Undoubtedly, deep gadget® stands out as the premier liquid cooling server, offering an unparalleled specialty in its field.
SPEC
28 ~ 56dB(Full load)
Quietness
442.5mm x 869mm x 266mm(6U)
Size
W x D x H
869mm(model 820mm + Handle 49mm + [Option]Lockable wheels 41mm)
AMD EPYC™ 7003Series Processors
CPU
3rd Generation Intel® Xeon® Scalable Processors
Up to 8 GPUs
GPU
NVIDIA L40S
NVIDIA RTX 6000 Ada
Up to 2TB
Memory
DDR4-3200 ECC
Up to 4TB main storage
HDD
M.2 NVMe SSD
Up to 64TB sub-storage
2.5” SSD / 2.5” HDD
19 PCIe 4.0 x8 or 8 PCIe 4.0 x16 + 3 PCIe 4.0 x8
PCIe
Windows, RHEL, Ubuntu, Rocky Linux
OS
2 x 10GbE Base-T
Network
IPMI
InfiniBand NDR / HDR / EDR Ethernet 400G / 200G / 100G
NIC - Infiniband Card 100G / 200G Dual Port (Option)
For 3 years
Warranty
4 x Hot swappable redundant 1,600W(6.4kW) 80Plus Platinum
Power
Manual download
Manual & Warranty
